SkyAssistant Vario-logger
for RC Sailplanes

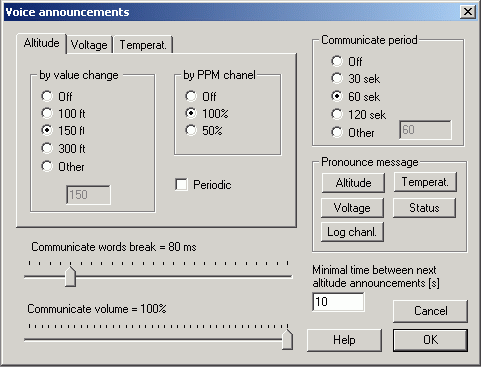

Voice announcement of altitude
Voice announcement of on-board battery voltage
Voice announcement of temperature
Up to 10 hours of data logging

Overview

The SkyAssistant is a small on-board device which indicates the model's vertical speed by an audible signal. Lift is indicated by a pulsed tone with rate and frequency of the pulses depending on the climb rate. Sink is indicated by a low, continuous tone depending on the sink rate. Audible signal and voice messages are transmitted by radio and can be received on standard LPD, PMR or FRS radio (FRS for US version). Here are samples of the vario tone and voice messages.

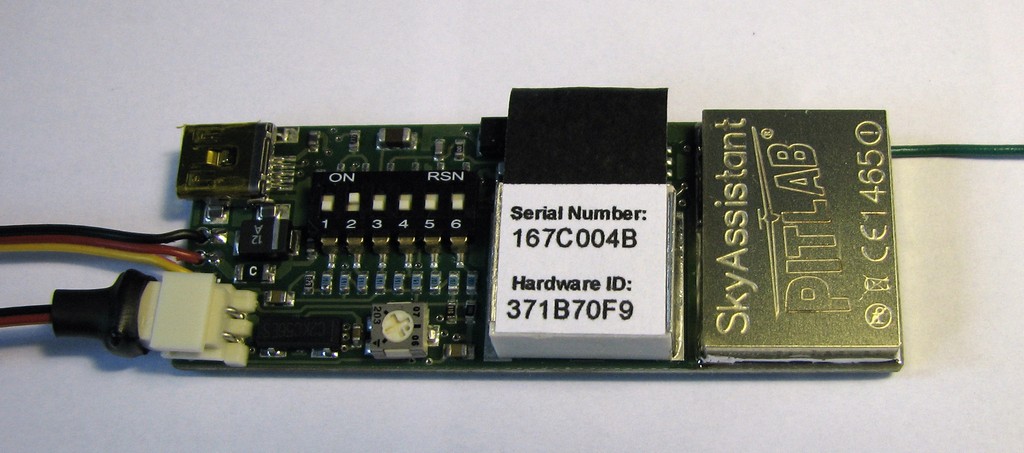

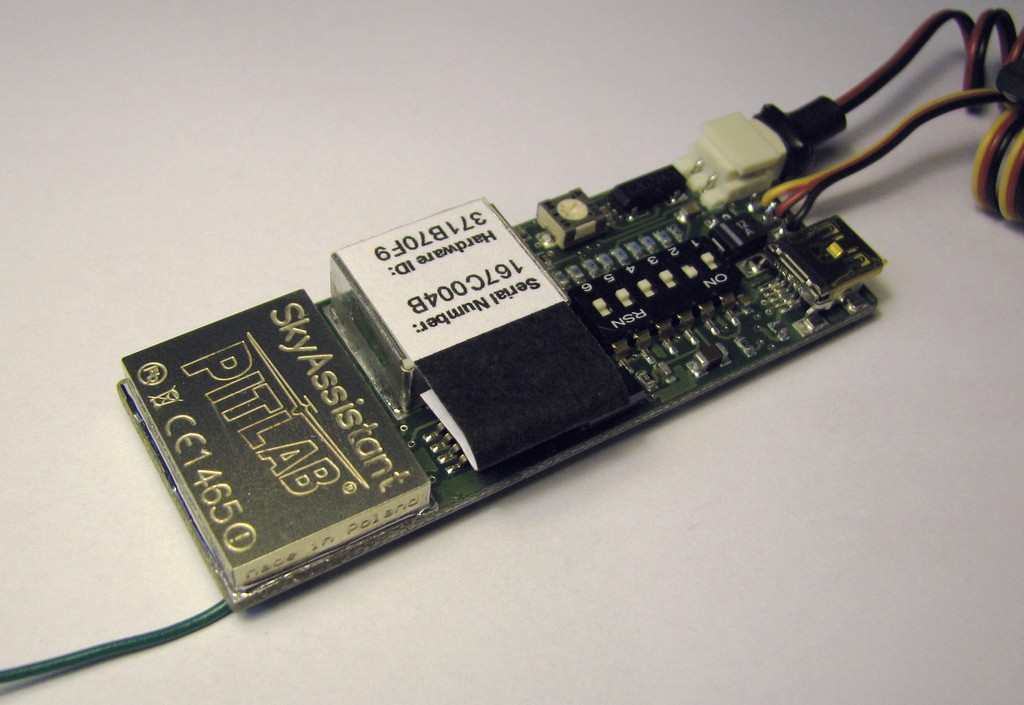

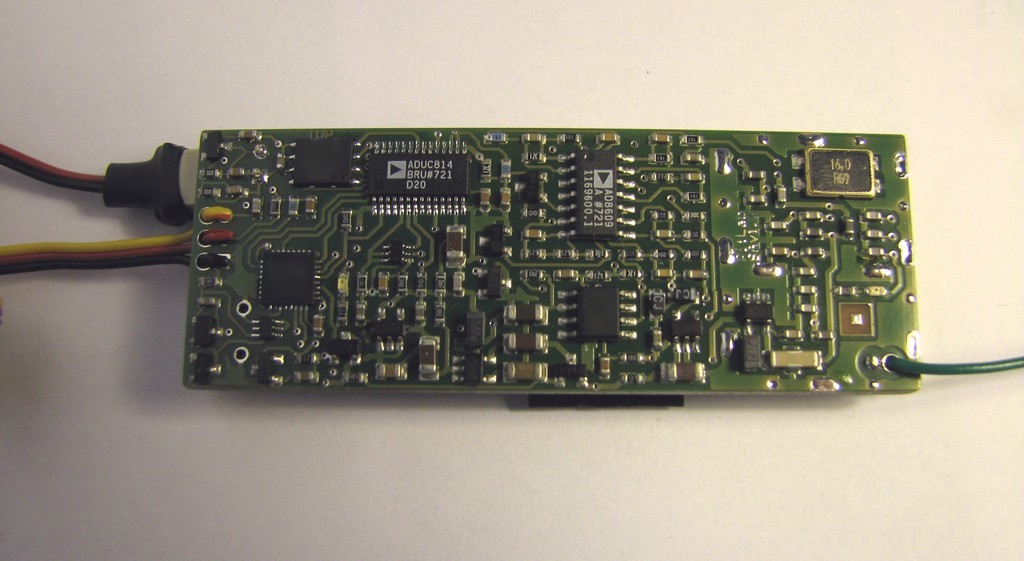

SkyAssistant

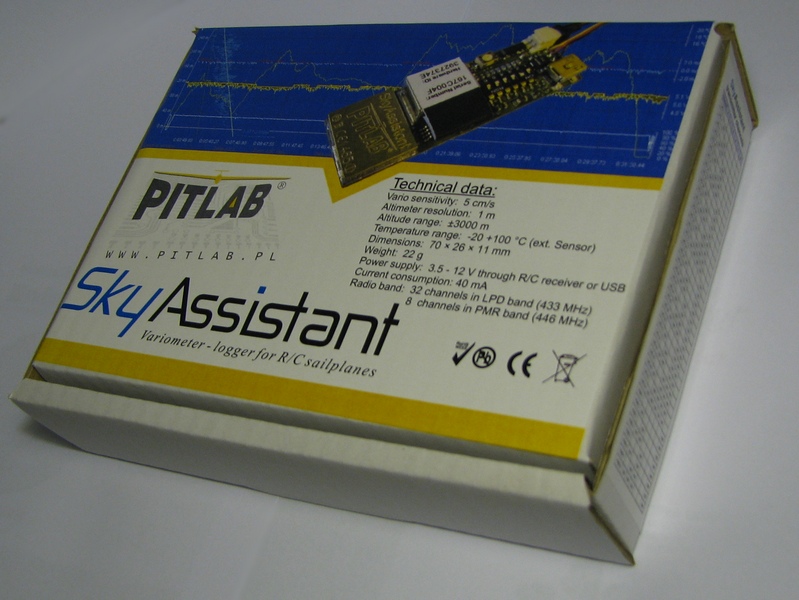

SkyAssistant Package

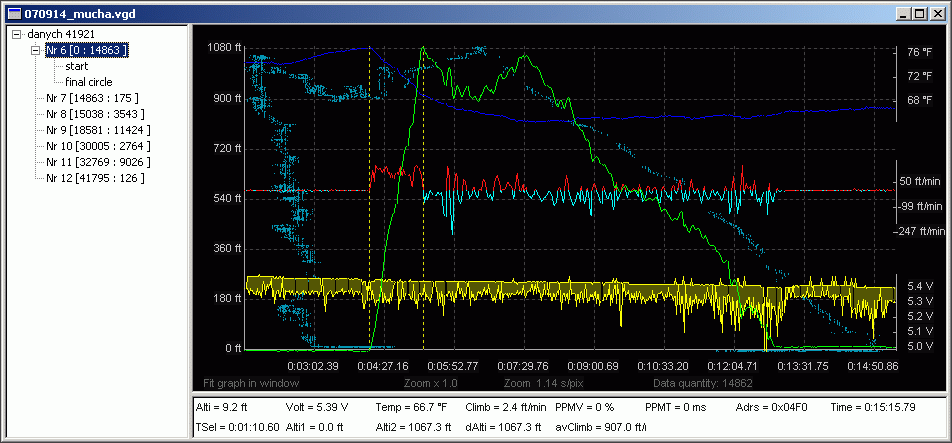

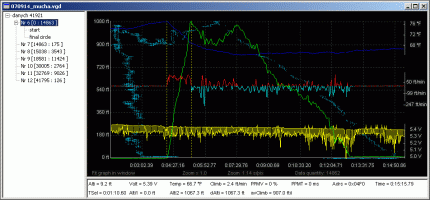

Data Logging Software

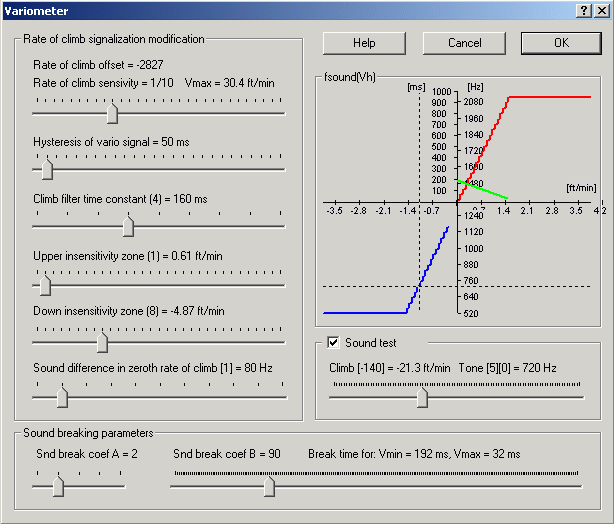

SkyAssistant Setup Software

Receiver

The SkyAssistant Vario will work with any FRS (Family Radio Service) radio or an RF scanner that covers the 462MHz and 467MHz bands. I get the best performance with my Icom scanner, but scanners are relatively expensive. I also get good performance with Icom FRS radios, but again, they are not the most economical. Over the next few weeks I will be testing various FRS radios that cost as little as $30. I'll post the results and any recomendations here.

Technical Specifications

Group	Parameter	Value	Unit
Dimensions	Length x Width x Height	2.75 x 1.02 x 0.43	in
Dimensions	Weight (with temperature sensor)	0.7	oz
Transmitter	Working frequency	FSR: 462.5625 - 467.7125	MHz
	Available radio channels	FSR: first 1..14	-
	Channel space	12.5	kHz
	RF Power	10.8 (12)	mW (dBm)
Power supply	Working voltage	3.5 - 12	V
Power supply	Current for Vbat=4.8V	on average 35, max 45	mA
Climb	Average sensitivity	2	ft/min
Climb	Measurement range	+-320	ft/min
Altitude	Measurement range	+-10000	ft
	Measurement resolution	0.3	ft
	Measurement accuracy	3	ft
Voltage	Measurement range	0 - 10	V
Voltage	Measurement resolution	0.01	V
Temperature	Measurement range	0 - 200	^oF
Temperature	Measurement resolution	0.1	^oF
Samples	Max lenght of voice messages	45	s
Samples	Sampling frequency	8	kHz
Log	Number of log records	1.8M	-
Log	Logging time of 1 parameter in every 0.1s	50:10	hh:mm
